Description

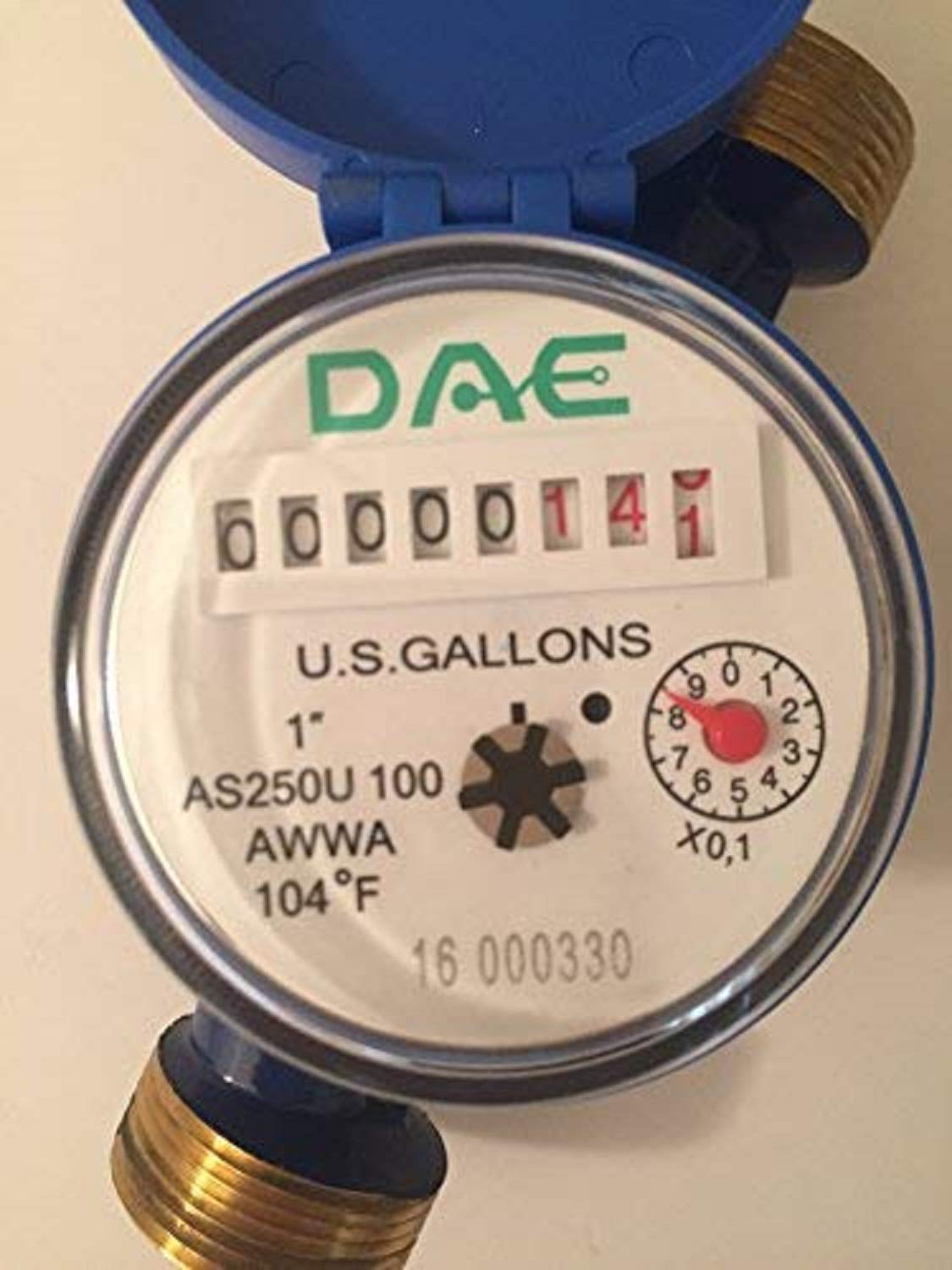

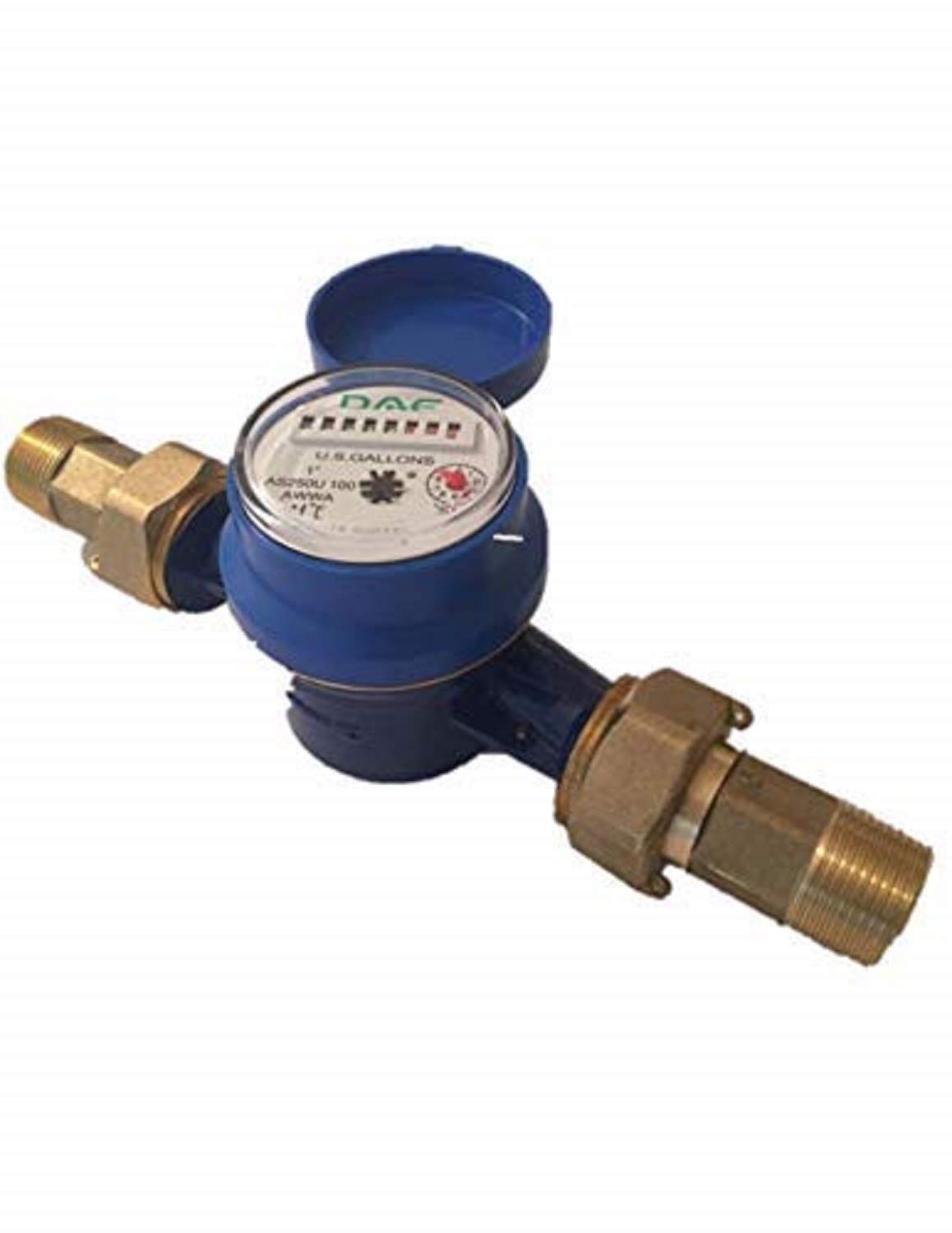

1" Water Meter, Measuring in Gallons + Couplings Model DAE AS250U-100 Type 1" Water Meter, Measuring in Gallons + Couplings Unit US Gallon Max temperature 104˚F (40˚C) Max. Working Pressure 232 psi, exceeding the requirement from AWWA standard 150 psi Meter Body Brass Size Length without couplings: 6.3 inches Length with couplings: 11.125 inches Item dimension: 6.3" length, 3.7" wide, 3" height Bore Diameter 0.77 inches (19.56 mm) Weight 3 lbs. 9 oz Pressure Drop 0.145 psi @ 5 GPM, 1.305 psi @15 GPM, 3.916 psi @ 25 GPM Not NSF61 DAE AS series like AS250U-100 is not NSF61. It is DAE MJ series (MJ-100) water meter which is NSF61. CA, VT, MD, LA require all the drinking water meters be NSF61 to meet their stringent regulation. Remark For buyers outside of USA In addition to the tax, the carriers may charge brokerage fee. How to read the meter? 8 digit register counter. The 1st digit from the right is in gallons (*1 gallon). The dial is in one tenth gallons (*0.1 gallons). If you see 00001234 on register, it is 1234 gallons. Upgrade to AS250U-100P for Simple Remote Reading Solutions With CO-10 or CO-10 KIT, you can read the water meter usage remotely on the electrical pulse counter. Upgrade to AS250U-100P for Cloud Metering for Water 1 AMR130AN KIT + 1 CC2030 KIT 1 DAE CC2030 KIT Gateway + 1 AMR130AN KIT can read 1 water meter with pulse output (like DAE AS250U-100P, MJ-100, PD-100, V-100P, VM-100P and WP-300P) remotely with cell phone, PC and generate billing report. One CC2030 Gateway can monitor 20 meters (water, electricity, and gas). 1 AMR130-RN KIT+1WSC500A + 1 CC2030 KIT For existing building, hard to draw cable between AMR130AN and CC2030, please choose 1 AMR130-RN KIT + 1 CC2030 KIT + 1 WSC500A to connect them wirelessly. For remotely monitoring a water meter in an area without power like the one in the farm, please choose CC2030 KIT+AMR130RB+WSC500A to connect Battery-Powered AMR130RB (close to water meter) and CC2030 (close to your router) wirelessly. 1 AMR KIT + 1 CC2030 KIT For monitoring up to 16 water meters remotely with cell phone, PC and generate billing report, you will just need 1 AMR KIT + 1 CC2030 KIT. 1 AMR KIT+2 WSC500A + 1 CC2030 KIT For existing building, hard to draw cable between AMR (close to water meter) and CC2030 (close to your router), please choose 1 AMR KIT + 1 CC2030 KIT+ 2 WSC500 RF Converter to connect them wirelessly. Back Flow Prevention Valve You must have back-flow-prevention valve in your piping system, or the reading of CO-10, Cell phone/PC may be more than the reading of water meter due to the backflow. Most of US piping system have back-flow-prevention valve. UL2464 Shielded Twisted Pair Cable with Drain Wire, 24 AWG To securely transfer metering data for DAE Cloud Metering Solutions on Water, please use UL2464 cable to extend connection between water meters (have about 4 ft pulse cable) and AMR130AN, or reading of Cell phone/PC may be more than the reading of meter due to exterior interference. With UL2464 cable, connection between meter, AMR130AN can be extended at least 328 ft, and at least 2000 ft between CC2030 and AMR130AN. DAE B1725 Plastic watertight NEMA 4 IP66 Universal Electrical Enclosure with Mounting Plate Indoor use only, DAE B1725 watertight enclosure is available for outdoor use. DAE AS250U-100 DAE MJ-100 DAE MJ-100n DAE PD-100 DAE V-100P DAE VM-100P Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 983 4.8 out of 5 stars 45 4.6 out of 5 stars 121 4.6 out of 5 stars 23 4.6 out of 5 stars 95 4.6 out of 5 stars 28 Price $76.00$76.00 $128.00$128.00 $147.59$147.59 $209.00$209.00 $116.99$116.99 $119.99$119.99 Pulse Output no data 1 Gallon Per Pulse 1 Gallon Per Pulse 1 Gallon Per Pulse 1 Gallon Per Pulse 1 Gallon Per Pulse NSF61 no data ✓ ✓ ✓ no data no data NTEP no data no data ✓ no data no data no data Mount Horizontal Horizontal Horizontal All position Vertical, water flowing upwards All position
Features
Horizontal Inline mount with dial facing upwards. For installing vertically with water flowing upwards, please refer to DAE V-100P or DAE VM-100P which can be installed in any position, vertically or horizontally, water flowing downwards or upwards, dial facing upwards, downwards or side-way. Not for use of pit application. For outdoor use, please refer to IP68 rated meters like DAE MJ-100c, PD-100, U-100, U-100b.

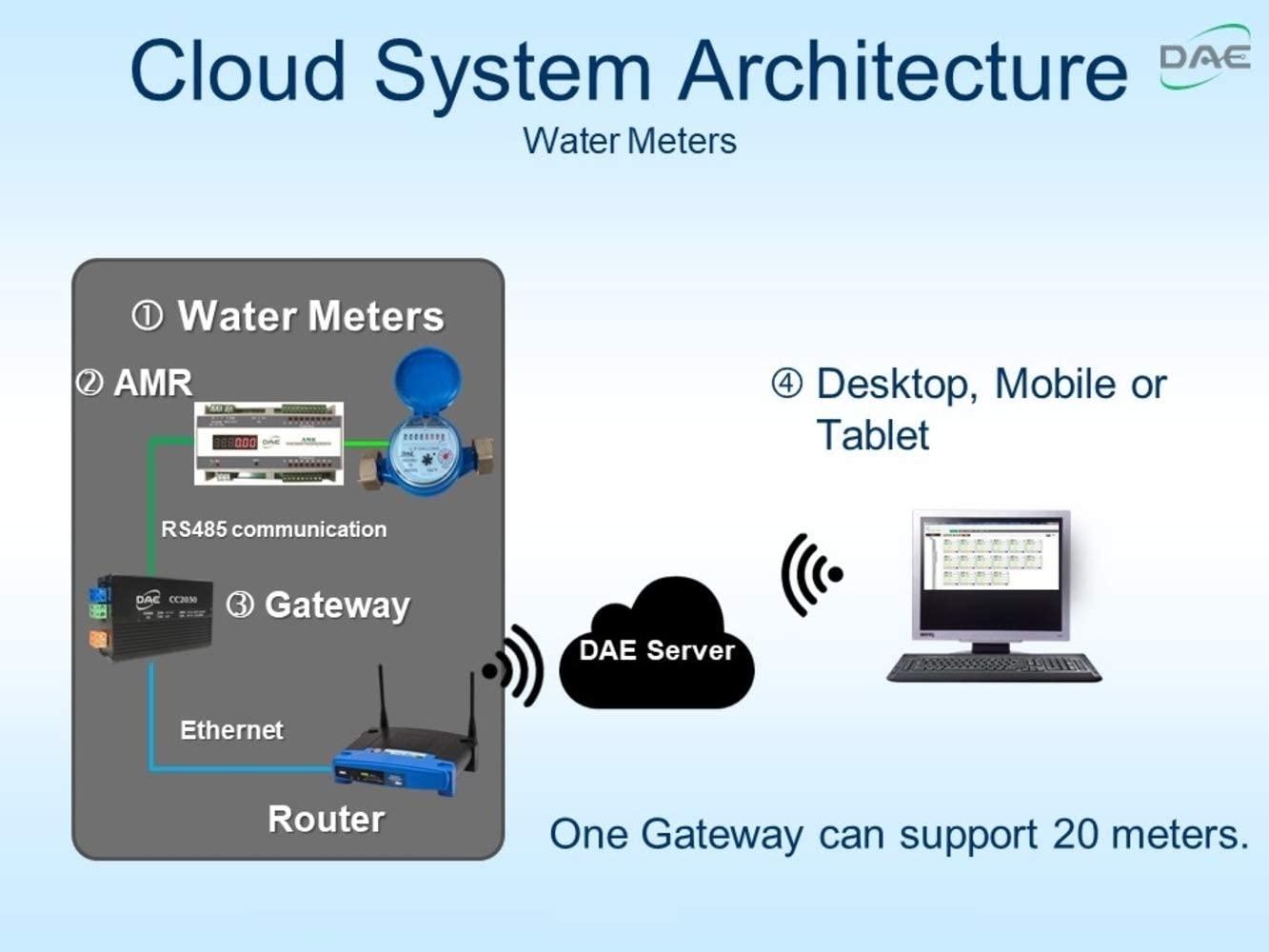

For upgraded AS250U-100P, Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130AN (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone.

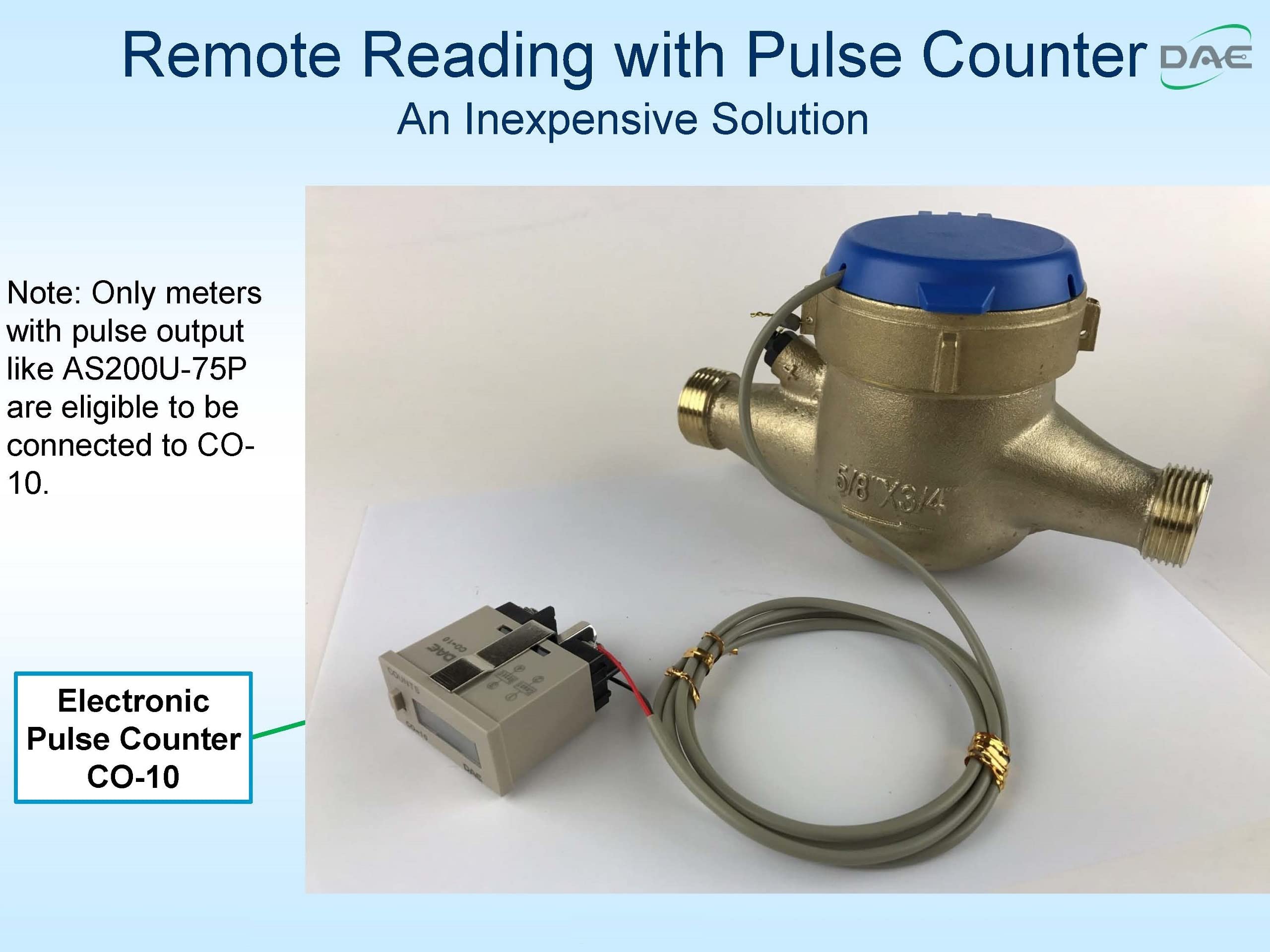

For upgraded AS250U-100P, ready for use with CO-10 (Electronic Pulse Counter) or CO-10 KIT - An inexpensive remote reading solution (6th picture). Can also use with DAE AMR130 (Auto Meter Reading Module for single water meter) and AMR (for 16 water meters) for remote reading (5th picture).CO-10 or AMR130 will be purchased separately. Conforms to both AWWA C700 and ISO 4064 Class C. for City water only.
Factory Calibration Certificates available. DAE Controls LLC is a Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
Accuracy +/-1.5% within normal flow as per AWWA Standard. Conforms to both AWWA and ISO 4064, for clean water only. Maximum Flow Rate 50 GPM (11.4 m³/h), Normal Flow Rate 25 GPM (5.7 m³/h), Minimum Flow Rate 3/4 GPM (0.17 m³/h).
